SKU# 47BCS224

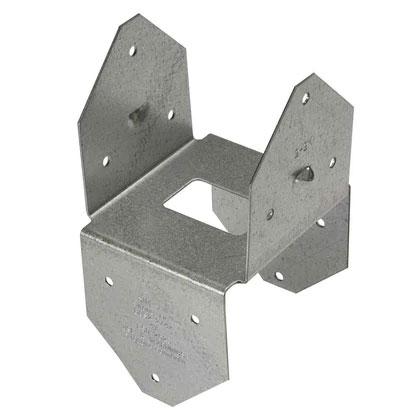

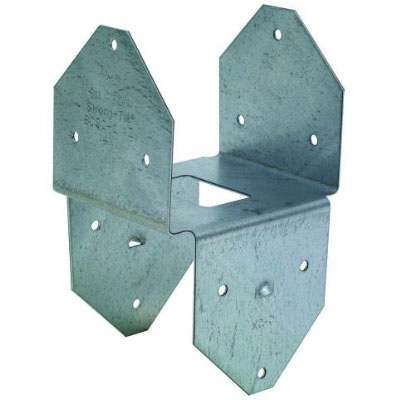

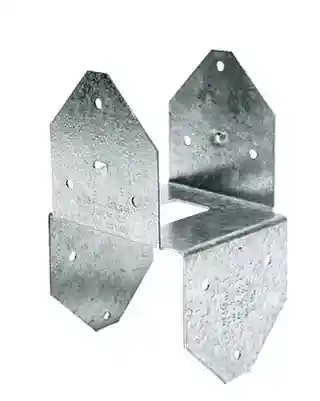

SIMPSON BCS2-2/4 DOUBLE SHEAR POST CAP ZMAX COATING (DBL-2X'S TO 4X POST)
UPC Code: 707392380504 Manufacturer Part #: BCS2-2/4 BCS224
Store: Arlington Coal & Lumber
Product Overview
The BCS is designed to connect a multi-ply member beam to a post. The dimensions of this post cap accommodate the narrower width of multiple 2x members on top of the post. The BCS provides both lateral and uplift support and features double-shear nailing that distributes the load through two points for optimal strength.
Key Features
- Opposing flanges provide increased lateral resistance
- Double-shear nailing for optimal strength
- Sized specifically for multi-2x widths
Product Specifications
| Brand |
Simpson Strong-Tie |
| Description | |
| Gauge |
18 GA |
| Height |
2-15/16 in |
| ITEMLABEL |
SIMPSON BCS2-2/4 DOUBLE SHEAR POST CAP ZMAX COATING (DBL-2X'S TO 4X POST) |
| Length |
2-7/8 in |
| Material |
G90 Galvanized |
| Model # |
BCS2-2/4 |
| Name |
Z-MAX POST CAP DOUBLE 2X4 20/CTN |
| Post Size |
Double 2x beam, 4x post |
| SKU |
47BCS224 5600637 |
| Width (1) |
3-1/8 in |
| Width (2) |
3-9/16 in |
